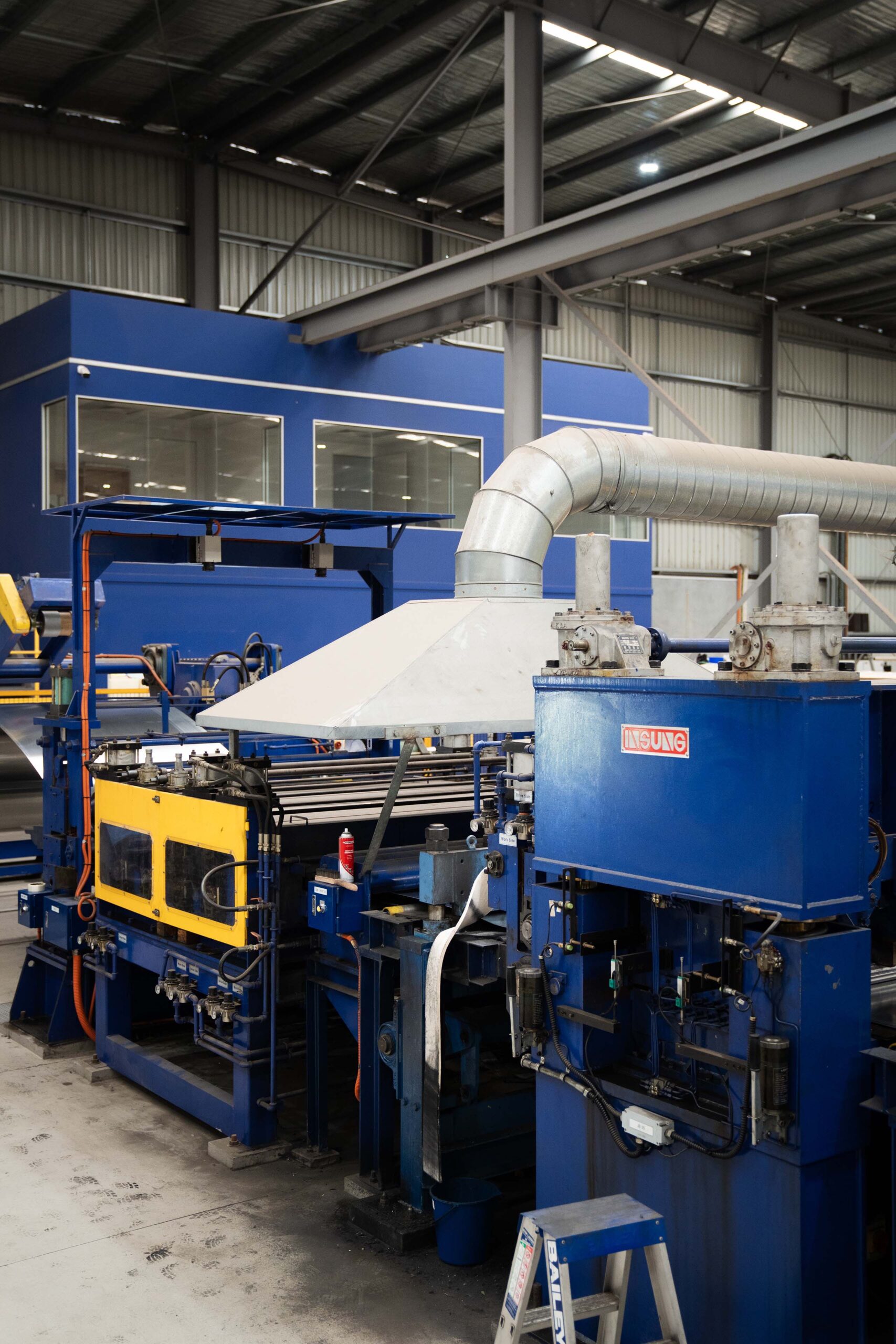

Cut to length

Make Enquiry

1 / 3

Capable of processing coil up to 1500mm wide and 3mm in thickness with further ability to paper interleave or add PE film to both sides. Sheets can be produced from as short as 450mm to as long as 8000mm. The line allows customers to order bespoke lengths to their exact project requirements in sub-mill order MOQs with a very short lead time. Materials to be processed are light gauge aluminium alloys. Material tensile strengths:

400 MPa up to 2.0mm
300 MPa 2.0mm – 3.0mm

Width:

Maximum material width: 1550 mm
Minimum material width: 200 mm

Thickness:

Maximum material thickness: 3.2 mm
Minimum material thickness: 0.28 mm

Coils:

Maximum coil mass: 10 tonne
Maximum coil diameter: 1800 mm
Coil bore: 508 mm

Length:

Maximum sheet length: 8000 mm
Minimum sheet length: 350 mm

Stacker:

Maximum stack mass: 5000 kg
Maximum stack height including pallet: 500 mm

Tolerances:

Length tolerance: ±0.3 mm
Diagonal tolerance: ±0.5 mm
Flatness tolerance: ADC Standard

Paper interleaving, PE coating one or two sides Pricing on application

Require custom sizing?

If you have an enquiry for a
custom size please get in
touch by clicking the button
below

Make Enquiry

Catalogue

Download our latest catalogue

We are committed to delivering exceptional
customer service and superior rolled and
extruded aluminium products tailored for the
engineering, marine, transport, building,
fabrication, and advanced technologies sectors.

Download Brochure

Name: Flat Bar

Desc: We stock quality extruded aluminium Solid rods in the following grades, offering an accurate cut to size service:

6061 T6511: Our Flat Bar range is used to support the Aerospace, Motorsport, high performance, general machining, hydraulic and engineering sectors it provides a structural grade with a high strength to weight ratio. We supply this material in a T6511 temper which provides additional stress relief to T6 Temper. Our size range from 25.4mm wide x 50.8mm to 152.4mm wide to 177.8mm

6060 T5: Our Flat Bar range is used for general purpose and architectural sectors, we provide this in a mill finish and a clear anodised finish. This grade can be chemically brightened, anodised and powder coated. Our size range from 3mm x 10mm to 25mm x 160mm.

Name: Round Bar

We stock quality extruded aluminium Solid rods in the following grades, offering an accurate cut to size service:

6061 T6/T6511: Our rod range is used to support the Aerospace, Motorsport, high performance, general machining and engineering sectors it provides a structural grade with a high strength to weight ratio. We supply this material in a T6511 temper which provides additional stress relief to T6 Temper. Our diameter range from 6.35mm to 304.8mm diameters.

6060 T5: Our rod range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated. Our diameter is range from 10mm to 25mm in diameter.

Name: Square Bar

We stock quality extruded aluminium Solid Square Bars in the following grades, offering an accurate cut to size service:

6061 T6511: Our Square Bar range is used to support the Aerospace, Motorsport, high performance, hydraulic and general machining and engineering sectors it provides a structural grade with a high strength to weight ratio. We supply this material in a T6511 temper which provides additional stress relief to T6 Temper. Our size range from 25.4mm to 152.4mm.

6060 T5: This Square Bar range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated. Our sizes ranges from 6mm to 65mm.

Name: Plate

Desc: We stock quality rolled aluminium plates in the following grades offering an accurate cut to size service:

5083 H116/H112/H321: Our plate range is used to support the Transport and Marine sectors it is a structural strength marine application plate. Our thickness ranges from 3.0mm to 100.0mm

6061 T651: Our plate range is used to support the Aerospace, Motorsport, high performance, general machining and engineering sectors, it provides a structural grade with a high strength to weight ratio. We supply this material in a T651 temper which provides additional stress relief to T6 Temper. Our thicknesses ranges from 6.35mm to 203.2mm.

7075 T651: Our plate range is used to support the Motor sport, Aerospace and high-performance sectors providing a high strength toughness and corrosion resistance application. We supply this material in a T651 temper which provides additional stress relief to T6 Temper. Our thickness ranges from 6.35mm to 152.4mm.

Name: Thread Plate

Desc: 5-bar pattern in a semi/bright finish providing a marine application. Our thickness ranges from 1.6mm to 6mm. We provide this Treadplate in several different widths and lengths, offering an accurate cut to size service and folding capabilities.

Propeller Plate 3003 H22: Single bar pattern chemically brightened in a polish finish providing a marine application. Our thickness ranges from 1.6mm to 4.76mm, offering an accurate cut to size service and folding capabilities.

Name: Angle

Desc: We stock quality extruded aluminium angles in the following grades and forms, we provide this in a mill finish and a clear anodised finish.

Equal and Un-equal

6060 T5: Our angle range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.

6061 T6/ 6005A T5: Our angle range is used for engineering sectors that requires structural grade with a high strength to weight ratio.

Name: Channel

Desc: We stock quality extruded aluminium angles in the following grades and forms, we provide this in a mill finish and a clear anodised finish.

Equal and Un-equal

6060 T5: Our channel range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.

6061 T6/ 6005A T5: Our channel range is used for engineering sectors that requires structural grade with a high strength to weight ratio.

Name: Sheet

Desc:Sheet: We stock quality rolled aluminium sheeting products in the following grades and finishes, offering an accurate cut to size service and folding capabilities:

5005 H34: Mill Finished and PE coated - This is the most commonly used sheet for fabrication, sheet metal, general purpose and commercial use. Our thickness ranges from 0.6mm to 6mm. We provide this Sheet in several different widths and lengths.

5052 H32: Mill finish only – used for Marine application it has corrosion resistance with a medium strength. Our thickness ranges from 1.6mm to 3mm.

Name: Hollow Rectangular Box

Desc: We stock quality extruded aluminium rectangular tube in the following grades and forms, offering an accurate cut to size service:

6060 T5: Our rectangular tube range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.

Name: Hollow Round Tube

Desc: We stock quality extruded aluminium round tubes in the following grades.

6060 T5 Our tube range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.

6061 T6/ 6005A T5: Our tube range is used for engineering sectors that requires structural grade with a high strength to weight ratio.

Name: Square Hollow Box

Desc: We stock quality extruded aluminium square tubes in the following grades and forms.

6060 T5: Our square tube range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.

Name: Miscellaneous

Desc: We stock quality extruded aluminium products that are listed below:

Transport Industry
Coolroom Industry
General Miscellaneous
Tee Sections
Signage Industry
Plastic Connectors

6060 T5: Our miscellaneous range is used for general purpose and architectural sectors, this grade can be chemically brightened, anodised and powder coated.
Plastic Connectors: Black in colour

Name: Coils

Coils: 5005: Mill Finished - This is the most commonly used sheet for fabrication, sheet metal, general purpose and commercial use. We provide this rolled into a coil. Our thickness ranges from 1.6mm to 3mm.

Coils 5052: Mill finish only – used for Marine application it has corrosion resistance with a medium strength. We provide this rolled into a coil. Our thickness ranges from 1.6mm to 3mm.

Name: Hexagonal Bar

Desc: We stock quality extruded aluminium hexagonal rods in 6061 T6 Grade. This Hex Bar range is used to support the Aerospace, Motorsport, high performance, general machining and engineering sectors it provides a structural grade with a high strength to weight ratio. Our size range from 10mm to 32mm.
